This guide provides step-by-step instructions to connect your AWS RDS database to Sequin.

​
Enable logical replication on RDS

By default, logical replication is not enabled on RDS. You can double check if logical replication is enabled by connecting to your database and running the following command:
SHOW rds.logical_replication;
If the output is off, then logical replication is not enabled. To enable it, follow these steps:
Enabling replication requires a restart of your database.
1

Create an RDS parameter group

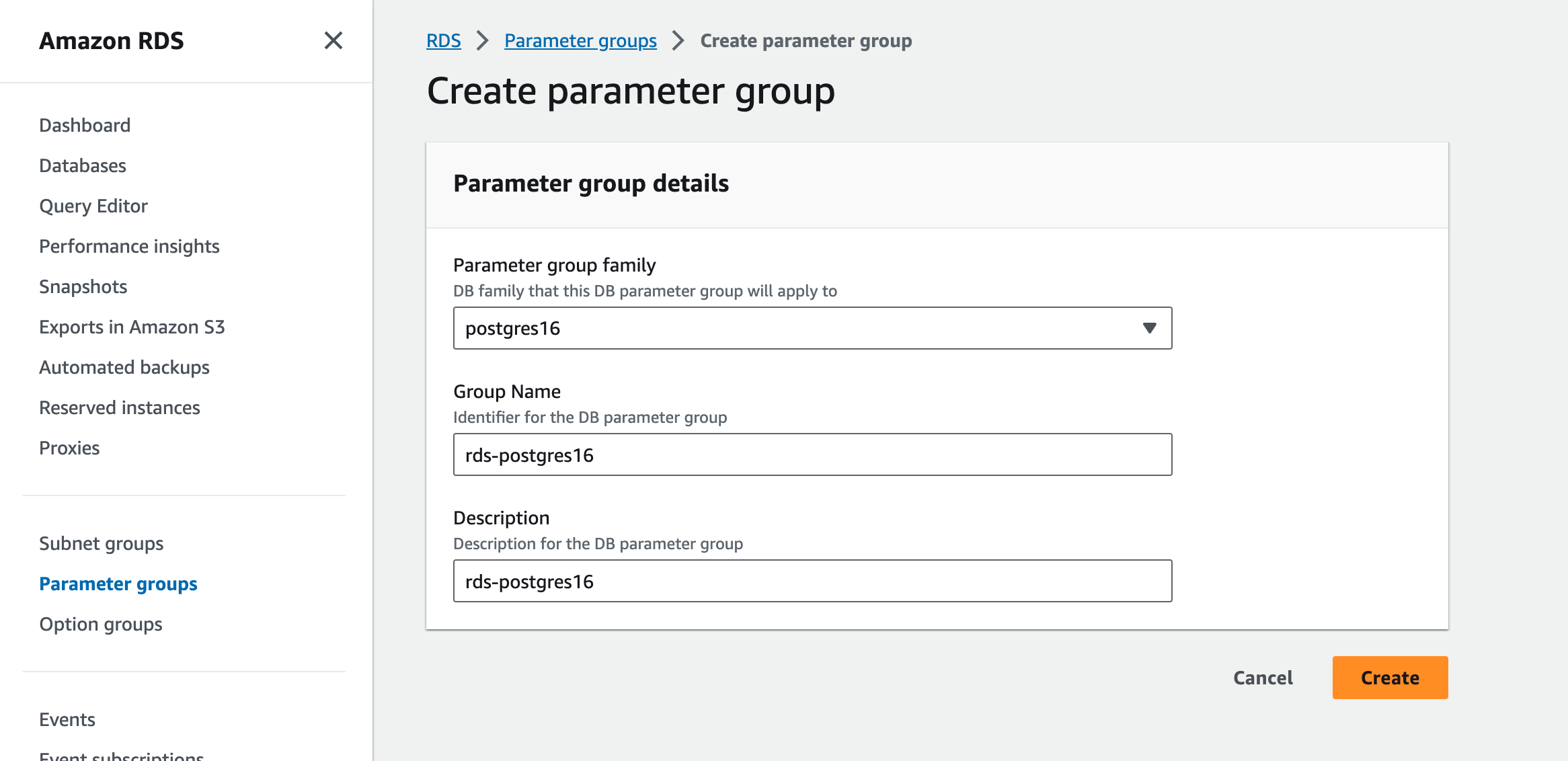

In the AWS RDS console, create a new parameter group for your database (“RDS” > “Parameter groups” > “Create parameter group”):
Create parameter group
  • “Parameter group family”: Select your Postgres version.
  • “Parameter group name”: Enter a name for your parameter group.
  • “Description”: Optionally, enter a description for your parameter group.
2

Enable logical replication

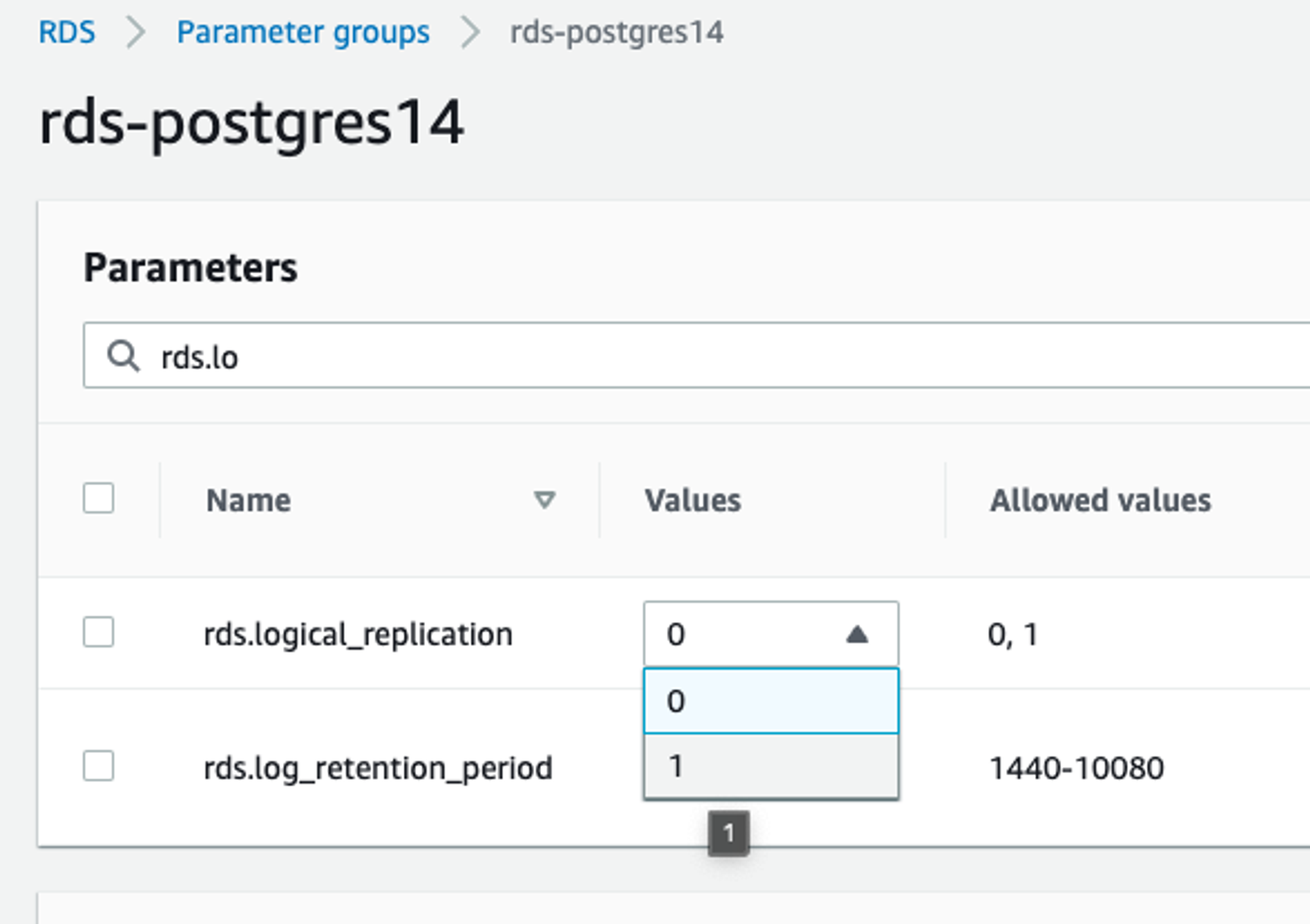

Edit the parameter group to enable logical replication by setting rds.logical_replication to 1:
Edit parameter group
3

Apply the parameter group to your database

Open your database options (“RDS” > “Databases” > “Modify”) and set the “DB parameter group” to the parameter group you created in the previous step. Select to “Apply immediately”.
Modify DB instance
4

Restart your database

Navigate to your database (“RDS” > “Databases”) and click on your database instance. Then click on the “Actions” button and select “Reboot”.
Reboot DB instance

​
Provision a Postgres user for Sequin

When in development, it’s probably fine to supply Sequin with an existing user. However, when in production, you should create a dedicated user for Sequin. The user needs the following permissions:
  1. connect permission on the database.
  2. select permission on all the tables you want to connect to Sequin.
  3. rds_replication permission to read from replication slots.
Here’s how to create a dedicated user with the minimum required permissions:
-- Create user with a secure password
create user sequin_user with login password 'REPLACE_WITH_SECURE_PASSWORD';

-- Grant connect permission
grant connect on database your_database to sequin_user;

-- Grant select permission on tables you want to replicate
grant select on table table1, table2, table3 to sequin_user;
-- OR grant select on all tables in a schema
grant select on all tables in schema public to sequin_user;

-- Grant replication permission
grant rds_replication to sequin_user;
To generate a secure password, if you have OpenSSL installed, you can use the following command:
openssl rand -base64 32

​
Connect Sequin to your RDS database

After enabling logical replication on RDS, you’ll now connect to your database in Sequin.
1

Enter connection details in Sequin

In the Sequin Console, click on the “Connect Database” button and enter the credentials for your RDS database:
  • Host: Your RDS host (e.g., mydbinstance.abcdefghijkl.us-west-2.rds.amazonaws.com)
  • Port: 5432 (default Postgres port)
  • Database: Your database name
  • Username: The sequin database user you created earlier
  • Password: The password for your sequin database user
Make sure to enable the SSL option for secure connection.
2

Create a publication

Connect to your database using the SQL client of your choice and execute the following SQL query to create a publication:
CREATE PUBLICATION sequin_pub FOR TABLE table1, table2, table3 WITH (publish_via_partition_root = true);
If you want to publish changes from all tables, you can use:
CREATE PUBLICATION sequin_pub FOR ALL TABLES WITH (publish_via_partition_root = true);
3

Create a replication slot

Next, create a replication slot to capture changes from the publication:
SELECT pg_create_logical_replication_slot('sequin_slot', 'pgoutput');
4

Enter the replication slot details in Sequin

Back in the Sequin Console, enter the name of the replication slot (e.g. sequin_slot) and publication (e.g. sequin_pub) you just created. Then, name your database and click Create Database.

​
