How to build automated workflows from database changes

This guide shows you how to break monolithic processes into automated, event-driven workflows using Sequin. You’ll learn how to capture database changes and trigger downstream processes reliably.

​

Prerequisites

If you’re self-hosting Sequin, you’ll need:

1. Sequin installed
2. A database connected
3. A sink destination (like SQS, Kafka, Redis, or HTTP)
4. A service or function to process changes (e.g., an application or AWS Lambda)

If you’re using Sequin Cloud, you’ll need:

1. A Sequin Cloud account
2. A database connected
3. A sink destination (like SQS, Kafka, Redis, or HTTP)
4. A service or function to process changes

​

Architecture overview

Your event-driven workflow will have these components:

1. Source table(s): The tables in Postgres that trigger your workflows
2. Destination sink: The message queue or webhook endpoint that delivers changes (e.g. SQS, Kafka, or HTTP endpoint)
3. Workflow processor: Your service that receives changes and triggers appropriate actions

​

Create a sink

First, create a sink to receive database changes. In the Sequin console, navigate to the “Sinks” tab and click “Create Sink”:

​

Verify messages are flowing

You can verify that changes are being captured by Sequin and flowing to your sink by checking the “Messages” tab on the sink’s overview page:

1. First, change a row in your source table.

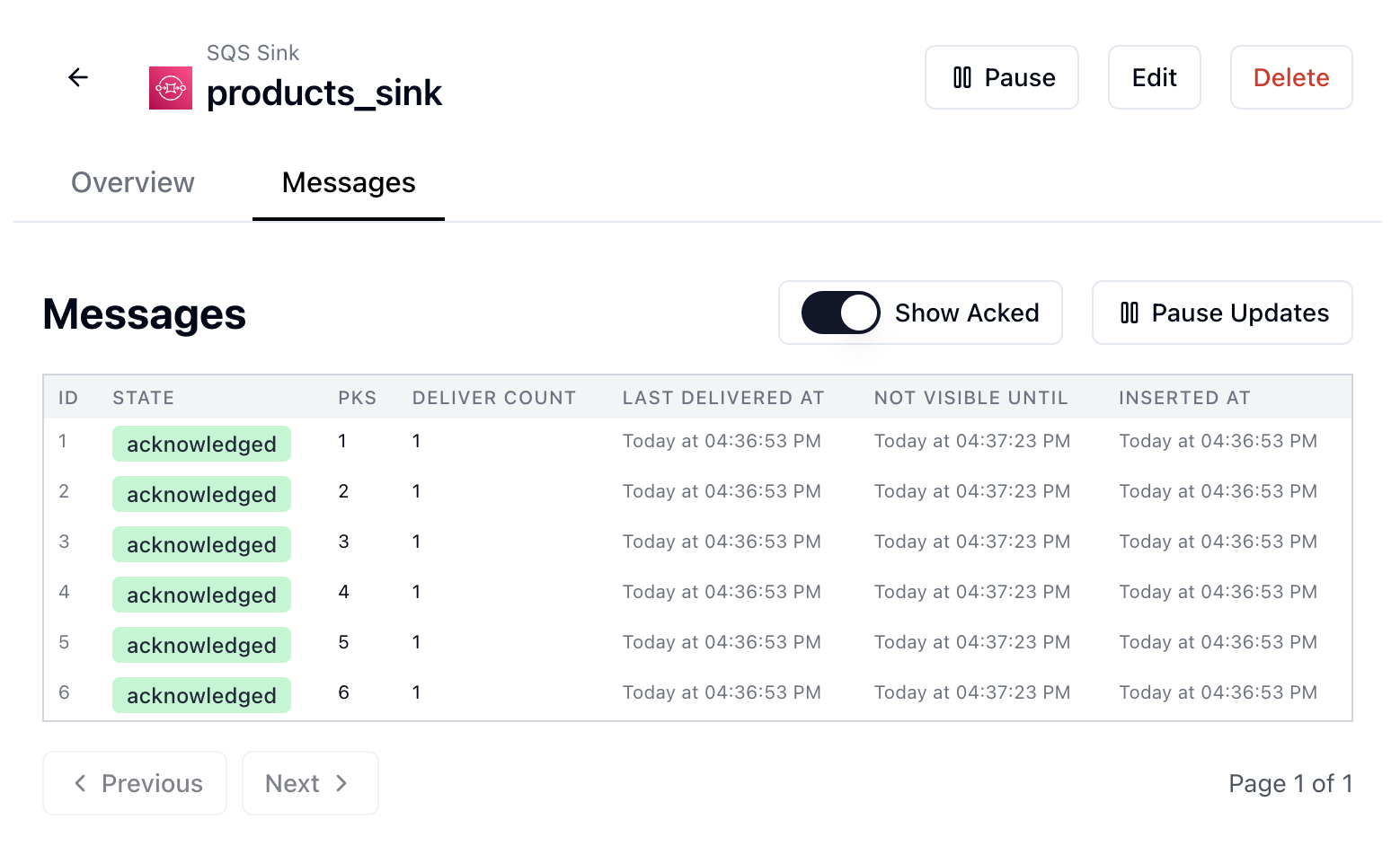

2. Then, check the “Messages” tab on the sink’s overview page. You should see a list of recently delivered messages:

​

Process changes and trigger workflows

Now that messages are flowing to your sink, you can build your workflow processor. Refer to the messages reference for the shape of the messages that flow to your sink.

Here’s a basic example of processing changes in Python:

from dataclasses import dataclass
from typing import Dict, Any

@dataclass
class WorkflowContext:
    table: str
    action: str
    record: Dict[str, Any]
    old_values: Dict[str, Any]

def process_change(change):
    # Create workflow context
    context = WorkflowContext(
        table=change.metadata.table_name,
        action=change.action,
        record=change.record,
        old_values=change.changes if hasattr(change, 'changes') else {}
    )

    # Route to appropriate workflow
    if context.table == 'orders':
        handle_order_workflows(context)
    elif context.table == 'users':
        handle_user_workflows(context)

def handle_order_workflows(ctx: WorkflowContext):
    if ctx.action == 'update':
        old_status = ctx.old_values.get('status')
        new_status = ctx.record['status']

        if old_status != new_status:
            if new_status == 'paid':
                trigger_fulfillment(ctx.record)
            elif new_status == 'shipped':
                send_tracking_notification(ctx.record)

def handle_user_workflows(ctx: WorkflowContext):
    if ctx.action == 'insert':
        trigger_welcome_email(ctx.record)
    elif ctx.action == 'update':
        if 'email' in ctx.old_values:
            trigger_email_change_verification(ctx.record)

​

Design considerations

​

Ordering

As mentioned earlier, Sequin will send changes for the same record in order to your sink. So, unless your sink is a Redis stream, you can safely assume this order in your processor.

However, changes across different records may appear out-of-order with respect to each other. i.e. a change for Row A may arrive before a change for Row B, even if the change for Row B was made more recently.

You can adjust the message grouping setting for your sink to change this behavior. See the sink reference for more details.

​

Multi-step workflows

If your workflow processor performs multiple actions, you should ensure those actions are idempotent. That’s because if one of the actions fails, you’ll want to retry processing the same message again.

For example, it’s probably safe if your workflow is upserting tables into multiple systems. If one of the upserts fails, you can retry the same message again safely, as replaying the successful upserts will have no effect.

However, if your workflow is triggering multiple side effects like sending emails, it’s not idempotent. If one of those actions fails, replaying the same message could result in sending the same email multiple times.

Here are ideas for breaking apart multi-step workflows per sink destination:

​

Maintenance

​

Replaying workflows

You may need to replay workflows in these scenarios:

1. Bug fixes in workflow logic
2. Recovery from downstream system failures
3. Backfilling historical data

Use Sequin’s backfill feature to replay changes from your source tables.

​

Next steps

See “Deploy to production” for guidance on deploying your workflows to production.
