Filters
Precisely control your data flow with powerful filtering options. Learn to filter by operation type, column values, and even nested JSON fields for efficient CDC processing.

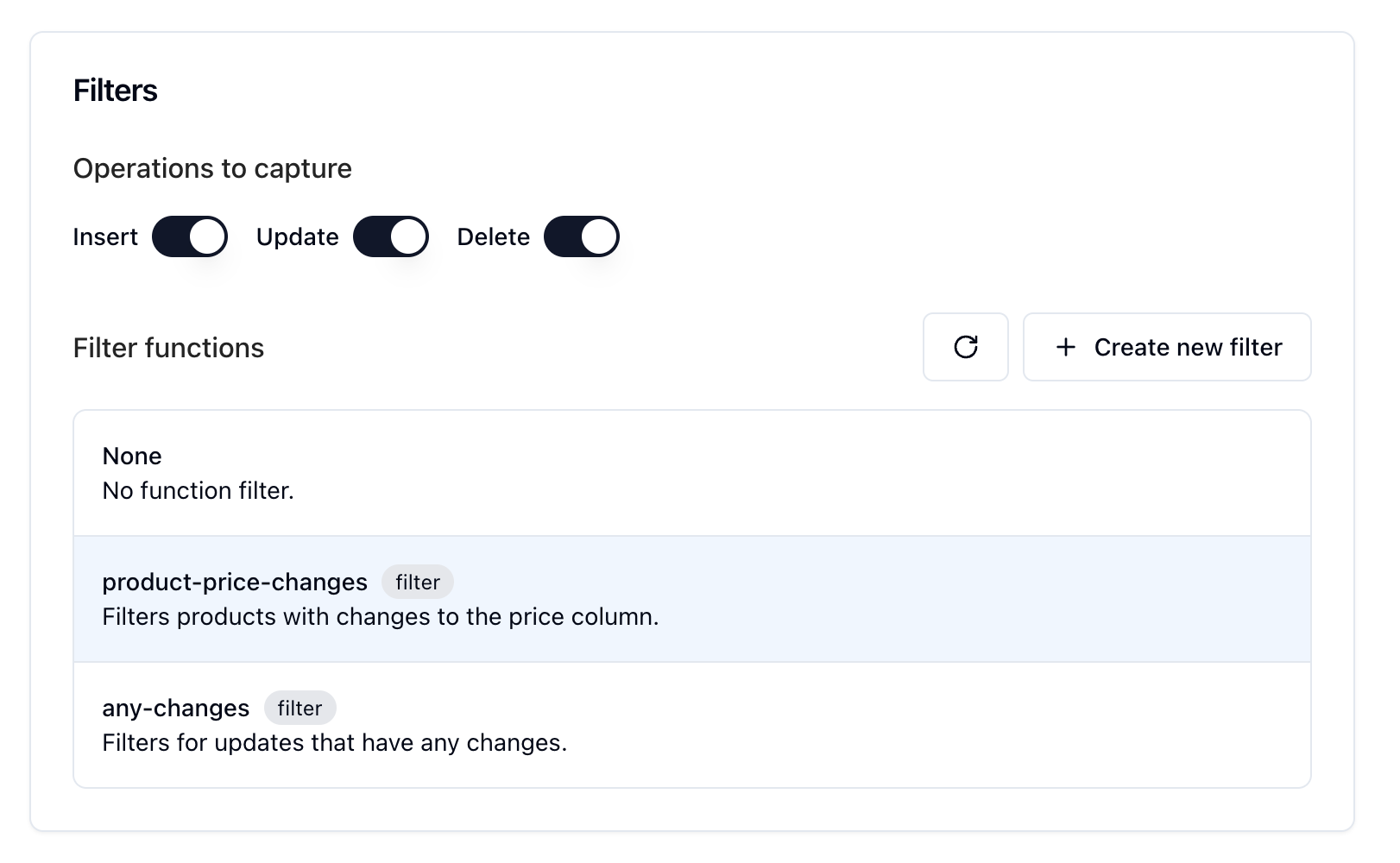

When setting up a sink, you can optionally specify one or more filters to apply to the table:
Only changes and rows that match the filters will be sent to the sink.
Operations to capture
When using change messages, you can specify which Postgres operations to capture:
insert
update
delete
If you backfill a table to a sink, Sequin will send read
messages for each row in the table, regardless of which operations you specify.
You do not specify Postgres operations for row messages. Instead, Sequin will always capture the latest version of each row.
Column filters
Column filters are SQL expressions (i.e. where
clauses) that Sequin will use to filter the rows that are sent to the sink.
- Column: The column to filter on.
- Operator: The operator to use for the filter.
- Comparison value: The comparison value to use for the filter.
The available operators are:
=
!=
>
>=
<
<=
in
not in
is null
is not null
JSON filters
Sequin also supports filtering on JSON columns. When you select a JSON column as the Column to filter on, you’ll see an expanded set of input fields:
- Column: The selected JSONB column to filter on.
- Field path: The path to the JSONB field you want to filter on. Use dot notation for nested fields (e.g., “address.city”).
- Field type: The data type of the JSONB field you’re filtering on. This helps ensure proper comparison and filtering.
- Operator: The operator to use for the filter.
- Comparison value: The comparison value to use for the filter.
Filter functions
Filter functions provide more advanced filtering capabilities than what’s possible with column filters alone. They allow you to:
- Apply complex conditional logic to your data
- Compare new and old values for changed rows
- Use string pattern matching or regular expressions
- Implement custom business logic for filtering
Filter functions are written in Elixir and must return a boolean value (true
or false
). Filter functions that return non-boolean values will fail to execute.
How filter functions work
When you create a filter function, you define an Elixir function that evaluates whether a message should be processed. For each message, your filter function receives:
Parameters:
action
: The operation type (e.g., “insert”, “update”, “delete”)record
: The full row/record data as a map with string keyschanges
: For update operations, contains the old values that were changedmetadata
: Additional information like table name, timestamp, etc.
How filters are combined
When you set up a sink with multiple types of filters, all filters are applied with a logical AND. This means:
- The operation must match one of the selected operations (insert, update, delete)
- The data must pass all column filters (if any)
- The filter function (if specified) must return
true
If any of these conditions fail, the message will not be delivered to the sink.
Example filter functions
Filter by string pattern
Filter by multiple conditions
Complex filtering with metadata
Filtering based on changes
Testing filter functions
When creating or editing a filter function, Sequin will automatically capture recent events from your database so you can test your function with real data. You’ll see a live preview showing which messages would pass or fail your filter.
