In this quickstart, you’ll create a real-time data pipeline that streams changes from a Postgres database to a Redis stream. You’ll:
  • Boot Sequin
  • Connect to a sample playground database
  • Configure a Redis stream to receive database changes
  • See your changes flow in real-time
By the end, you’ll have hands-on experience setting up Postgres change data capture (CDC) with Sequin and Redis Streams.
This is the quickstart for streaming Postgres to Redis Streams. See the how-to guide for an explanation of how to use the Redis Stream sink or the reference for details on all configuration options.
This guide is for Redis Streams which use XADD to build a stream. If you are want to use Redis key/values, see our Redis String quickstart.

Boot Redis

If you don’t already have Redis running, start Redis with Docker:
docker run --name redis -p 6379:6379 -d redis:latest
If you’re using another Redis instance, be sure you’re using Redis 5.0+ (required for streams).

Run Sequin

The easiest way to get started with Sequin is with our Docker Compose file. This file starts a Postgres database, Redis instance, and Sequin server.
1

Create directory and start services

  1. Download sequin-docker-compose.zip.
  2. Unzip the file.
  3. Navigate to the unzipped directory and start the services:
cd sequin-docker-compose && docker compose up -d
2

Verify services are running

Check that Sequin is running using docker ps:
docker ps
You should see output like the following:
CONTAINER ID   IMAGE                           COMMAND                  CREATED          STATUS                    PORTS                              NAMES
bd5c458cabde   sequin/sequin:latest            "/scripts/start_comm…"   11 seconds ago   Up 9 seconds              4000/tcp, 0.0.0.0:7376->7376/tcp   sequin-sequin-1
3bacd89765e7   grafana/grafana                 "/run.sh"                11 seconds ago   Up 11 seconds             0.0.0.0:3000->3000/tcp             sequin-sequin_grafana-1
3ad41319a66c   postgres:16                     "docker-entrypoint.s…"   11 seconds ago   Up 11 seconds (healthy)   0.0.0.0:7377->5432/tcp             sequin-sequin_postgres-1
6139a5fc4e80   redis:7                         "docker-entrypoint.s…"   11 seconds ago   Up 11 seconds             0.0.0.0:7378->6379/tcp             sequin-sequin_redis-1
7e07a5b052de   prom/prometheus                 "/bin/prometheus --c…"   11 seconds ago   Up 11 seconds             0.0.0.0:9090->9090/tcp             sequin-sequin_prometheus-1
Sequin, Postgres, Redis, Prometheus, and Grafana should be up and running (status: Up).

Login

The Docker Compose file automatically configures Sequin with an admin user and a playground database.Let’s log in to the Sequin web console:
1

Open the web console

After starting the Docker Compose services, open the Sequin web console at http://localhost:7376:
Sequin login page, allowing login with default credentials
2

Login with default credentials

Use the following default credentials to login:
  • Email:
admin@sequinstream.com
  • Password:
sequinpassword!

View the playground database

To get you started quickly, Sequin’s Docker Compose file creates a logical database called sequin_playground with a sample dataset in the public.products table.Let’s take a look:
1

Navigate to Databases

In the Sequin web console, click Databases in the sidebar.
2

Select playground database

Click on the pre-configured sequin-playground database:
Playground database
The database “Health” should be green.
3

View contents of the products table

Let’s get a sense of what’s in the products table. Run the following command:
docker exec -i sequin-sequin_postgres-1 \
  psql -U postgres -d sequin_playground -c \
  "select id, name, price from products;"
This command connects to the running Postgres container and runs a psql command.
You should see a list of the rows in the products table:
  id |         name          | price
----+-----------------------+-------
  1 | Avocados (3 pack)     |  5.99
  2 | Flank Steak (1 lb)    |  8.99
  3 | Salmon Fillet (12 oz) | 14.99
  4 | Baby Spinach (16 oz)  |  4.99
  5 | Sourdough Bread       |  6.99
  6 | Blueberries (6 oz)    |  3.99
(6 rows)
We’ll make modifications to this table in a bit.

Create a Redis Stream Sink

With the playground database connected, you can create a sink. This sink will send changes to the products table to your Redis stream:
1

Navigate to Sinks

Click “Sinks” in the sidebar navigation, then click “Create Sink”.
2

Select sink type

Select “Redis Stream” as the sink type and click “Continue”.
3

Note "Source" configuration

In the “Source” card, note that the sequin-playground database is selected and all schemas and tables are included. Leave these defaults:
Source card showing the sequin_playground database and products table
4

Setup a backfill

In the Inital backfill card, select the public.products table to initate a backfill when the sink is created.
Initial backfill card with public.products table selected
5

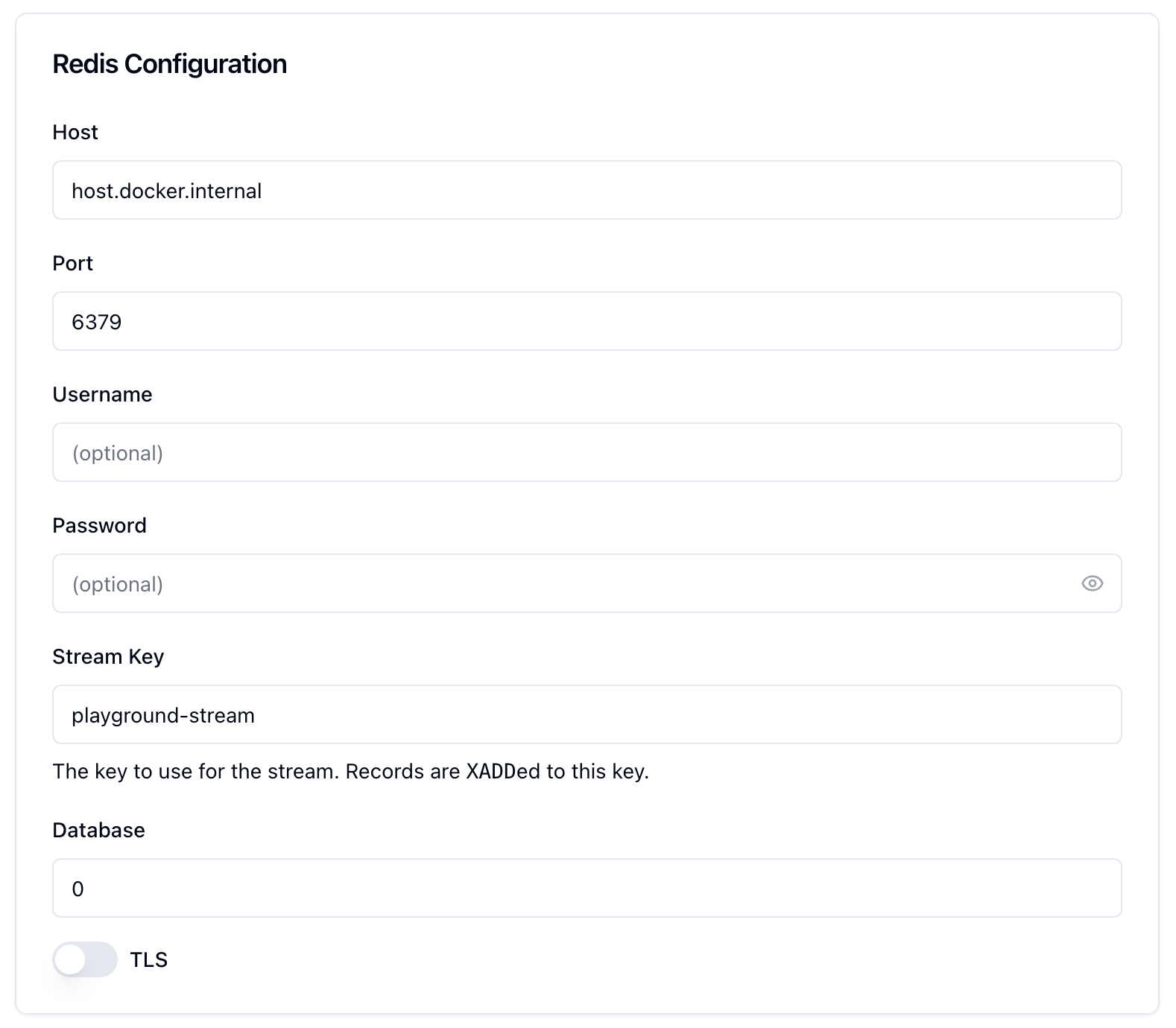

Configure "Redis Configuration"

In the “Redis Configuration” card, enter your Redis connection details.
  • Host: If running locally with Docker, use host.docker.internal
  • Port: The port Redis is listening on (default: 6379)
  • Username: Required if Redis authentication is enabled
  • Password: Required if Redis authentication is enabled
  • Stream Key: The Redis stream to write to (e.g., products-stream)
  • Database: The Redis database number (default: 0)
  • TLS: Toggle on if your Redis instance requires TLS
Redis configuration card
6

Test the connection

At the bottom of the form, click the “Test Connection” button. If you provided proper credentials, it should succeed.
Sequin can connect to your Redis instance.
7

Create the sink

You can leave the rest of the defaults. As configured, the Redis stream will first receive a backfill of all rows currently in the products table. Then, it will receive all changes to the products table in real-time.Click “Create Sink” to finish setting up your Redis Stream sink.

See changes flow to your Redis stream

On the new sink’s overview page, you should see the “Health” status turn green, indicating data is flowing to your Redis stream.Let’s confirm messages are flowing:
1

Messages tab

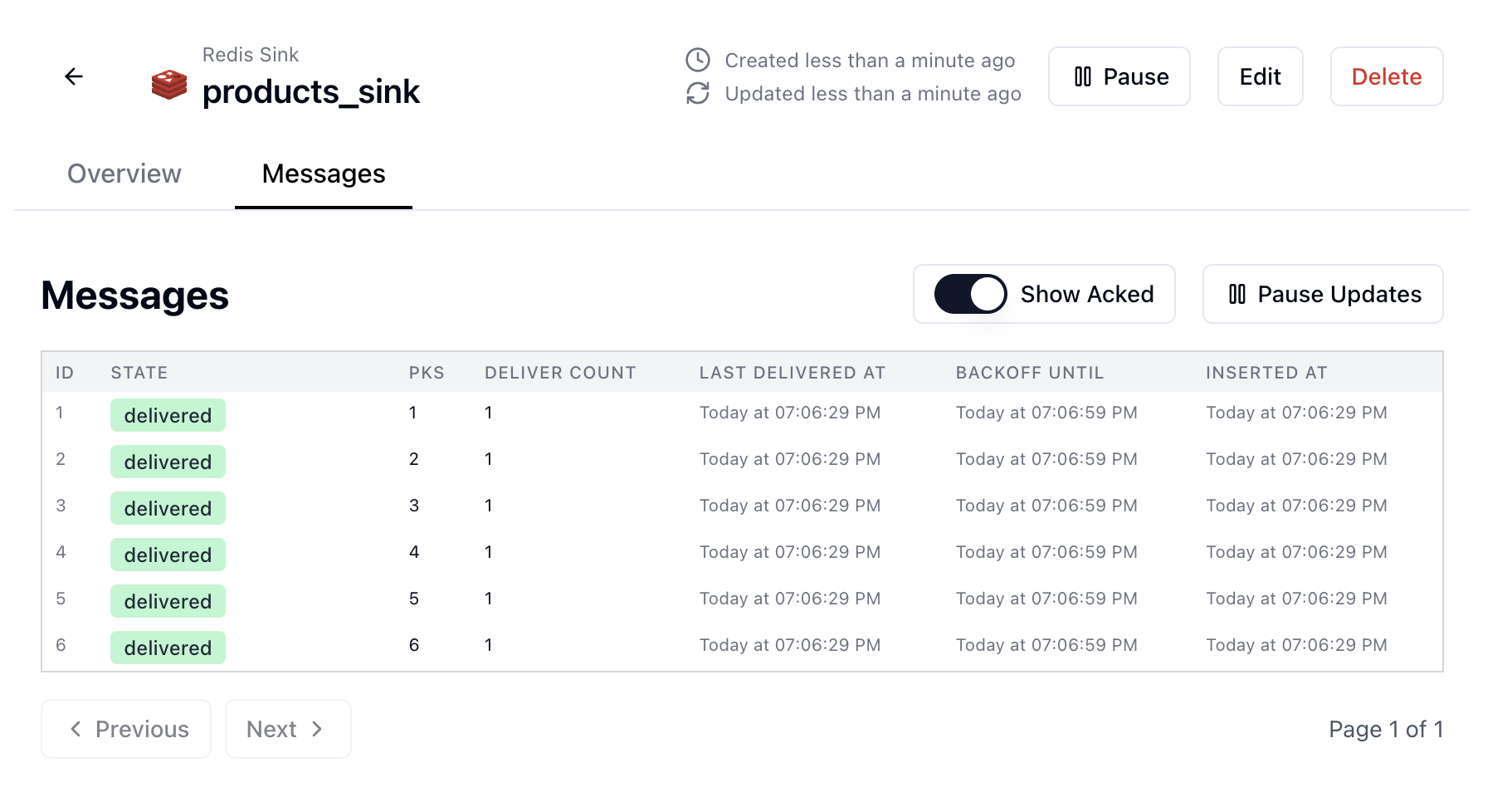

Click the “Messages” tab. You’ll see a list of the recently delivered messages:
List of recently delivered messages
Sequin indicates it backfilled the products table to your Redis stream.
2

View in Redis CLI

Connect to your Redis instance using the Redis CLI and read from the stream:
redis-cli
> xread count 5 streams playground-stream 0
You should see the messages that were sent from Sequin. These are read events from the initial backfill of the products table.
Messages are flowing from Sequin to your Redis stream.
3

Make some changes

Let’s make some changes to the products table and see them flow to your stream.In your terminal, run the following command to insert a new row into the products table:
docker exec -i sequin-sequin_postgres-1 \
  psql -U postgres -d sequin_playground -c \
  "insert into products (name, price) values ('Organic Honey (16 oz)', 12.99);"
In Redis CLI, read the latest messages from the stream:
xrevrange playground-stream + - count 1
You should see a message corresponding to the inserted row.Feel free to try other changes:
Each change will appear in your Redis stream within a few seconds.
Great work!
You’ve successfully:
  • Set up a complete Postgres change data capture pipeline
  • Loaded existing data through a backfill
  • Made changes to the products table
  • Verified changes are flowing to your Redis stream

​
Ready to stream

Now you’re ready to connect your own database to Sequin and start streaming changes:

Guide: Connect Postgres

Connect your Postgres database to Sequin.

Guide: Setting up a Redis sink

Setup a Redis sink to send changes to your stream.
